TopDon Phoenix Smart

TopDon Smart

Topdon Phoenix Smart

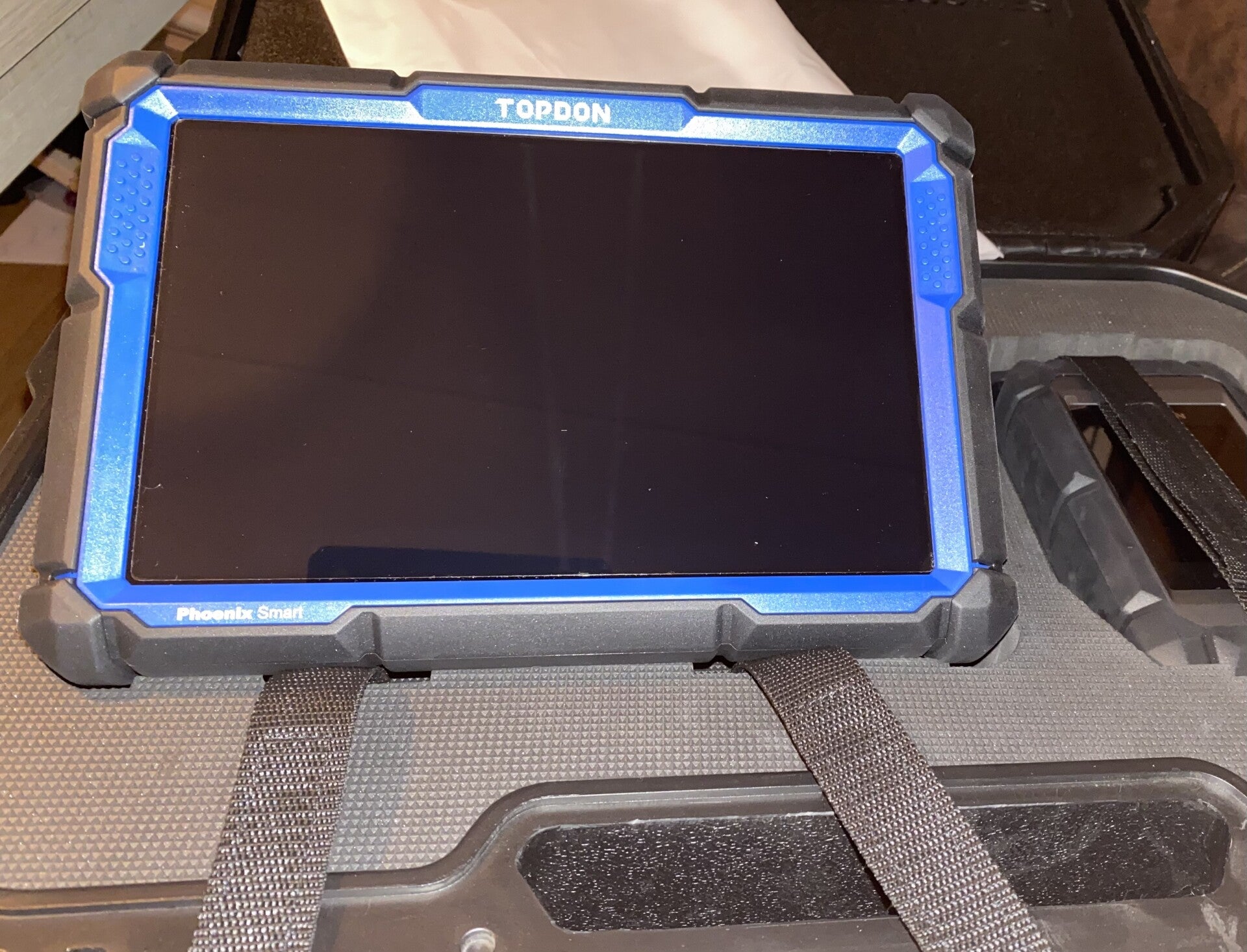

The Phoenix Smart® is part of the new generation of intelligent diagnosis tools from TOPDON. Equipped with quad-core processors and a 10.1-inch HD touch screen, this tool allows you to diagnose error codes and error codes with one click. The 12000mAh battery can work all day without fear of losing power. The Phoenix Smart also supports online programming for more than 9 car brands and includes 2 years of free software upgrades. In combination with the MDCI Pro, this scanner offers you unprecedented coverage, intelligent diagnoses and a wide range of maintenance functions.

CHARACTERISTICS

The Phoenix Smart supports full system fault diagnosis of over 200 vehicle brands. This tool provides OE level diagnostics for Asian, American, European and most models.

The Phoenix Smart includes support for cloud-based programming functions for more than 9 car brands, such as Mercedes-Benz, BMW, Volkswagen (Audi/Skoda/Seat), Porsche, Land Rover/Jaguar, Nissan, Subaru, Renault and many more!

TOPDON's Phoenix Smart comes with the Phoenix MDCI Pro, a VCI that supports the J2534, DoIP, CanFD, D-PDU and RP1210 protocols.

The Phoenix Smart software includes intuitive, step-by-step, code-based guided procedures for Volkswagen, Audi, Skoda and SEAT vehicles.

This advanced diagnostic tool supports FCA Gateway Access, allowing you to work on the most modern brands and customize secure features.

The Phoenix Smart uses topology maps, showing the entire sensor system of the vehicle. Raw data is converted into clear graphics, allowing technicians to see the complete status of the vehicle's system and instantly troubleshoot the vehicle.

The Phoenix Smart allows users to unlock special features and settings of vehicles. Advanced features include enabling Video-In-Motion via DVD or USB, disabling seat belt, and many other options. Applicable to car brands such as Audi, Volkswagen, BMW, Porsche, Toyota and more!

Offer more to your customers with TOPDON's ADAS calibration. The Phoenix Smart and combine with a TOPDON Phoenix ADAS Mobile package to easily calibrate complex driver assistance functions.

TECHNICAL SPECIFICATIONS

Display: LCD 10.1 inch, 1280 * 800

CPU: 4-core processor, 2.0 GHz

Android 10.0

RAM: 4G, ROM 128G

Battery: 12000mAh / 3.8V

Operating voltage: 9~18V

Storage Temperature: -20℃~60℃（-4℉~140℉）

Working Temperature: 0℃~50℃（32℉~122℉）

Size: 278*191*48mm (10.94*7.52*1.89in)

Package Size: 468 * 320 * 143mm (18.43 * 12.60 * 5.63 inch)

Net weight: 1455 g (3.20 lb)

Multi-language support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Korean, Chinese (Traditional), Hungarian, Dutch, Turkish, Polish, Finnish

PACK LIST

1* Phoenix Smart Tablet

1 * VCI Dongle (J2534)

1 * OBDI Adapter BOX Transfer Line

1 * OBDII Extension Cable

1 * Cigarette Lighter Cable

1* Type-C to USB Cable

1* Battery clamps/cable set

1 * Power Adapter:

1 * User Manual:

1* Password Envelope

1 * Non-16 Pin Adapter Cable Kit

1 * BMW Programming Line:

1 * Ethernet Cable

1 * USB Ethernet Adapter
